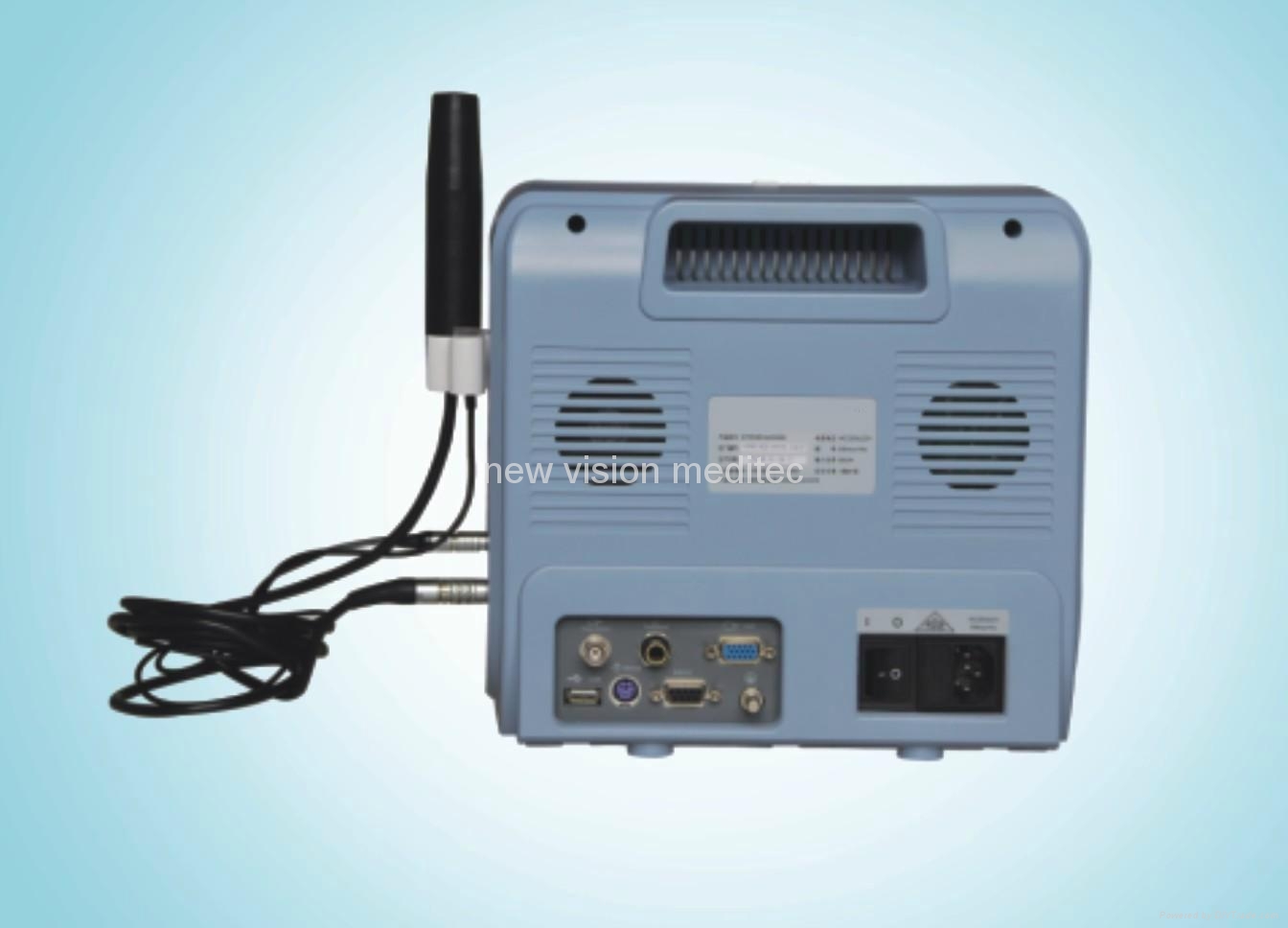

A/B-Scan Ophthalmic Ultrasound
Features
Built-in Workstation
Detailed Resolution, Color TFT Display
Multiple Display and Continuous Zoom
Turn-up Keyboard, Fully Portable
Real Time Images, Cine-Loop
User and Patient information Entry
Mass images Storage
Document Management, Search and Statistic
Trackball for Easy Measurement and Operation
Clinical Reports with Images Print Out
Custom Velocity Settings
Physical dimension & weight
Dimensions: 240 (H) × 255 (W) × 160( D)mm
9.5( H)× 10 (W) × 6.3 (D)inches
Weight: 3.0kg ( 6.6lbs)
Operating environment
Power Supply: AC100-240V 50/60Hz 80VA Max
Temperature: 10-35
Humidity: 10 - 80%
Performance specifications
Display:Large Color TFT (Diagonal)
USB 2.0 Ports for Memory Sticks and Peripherals
Mouse Port
Image Output (optional): Video Printer/Laser Printer/Color Inkjet Printer/Workstation
Report Print Out: Patients Information, Clinical Situation Description of Images
External Large SVGA monitor
A-SCAN
Frequency: 10MHz Fixation LED
Clinical Accuracy: 0.04mm
Minimum Indicated Unit: 0.01mm
Measuring Range (AL): 15-40mm
Measuring Mode: Immersion /Contact
Measuring Value: Cornea Thickness (Immersion Mode),Anterior Chamber Depth, Lens Thickness,
Vitreous Length, Axial Length
Measuring Method: Manual/Automatic (for Phakic, Aphakic, Cataract, Pseudophakic)
B-SCAN
Frequency: 10MHz Sealed probe
Scanning Method: Digital High Resolution Sector Scanning
Scanning Scope: 53 degrees
Gain Control: 20-99 dB
Resolution: Lateral ≤0.4mm, Axial≤ 0.2mm
Detecting Depth: ≤60mm
Display Method: B,B+A,B+B,B+B+B+B,A
Zoom: 6 steps selectable (31-60mm)
Gray Scale: 256 Levels
Color: 16 color codes
Cineloop: 12 sec/128 images, single or circle
Post Processing: Distance, Area Measurement, Annotation
Thousand Patient Images Internal Storage
IOL Formula: SRK-II,SRK-T,BINKHORST-II, HOLLADAY,HOFFER-Q,HAIGIS
IOL Types: PMMA, Acrylic, Silicone
Statistics: Average and Standard Deviation
Thousands Patient Data internal Storage
