CE and FDA
| Characteristics: |
|

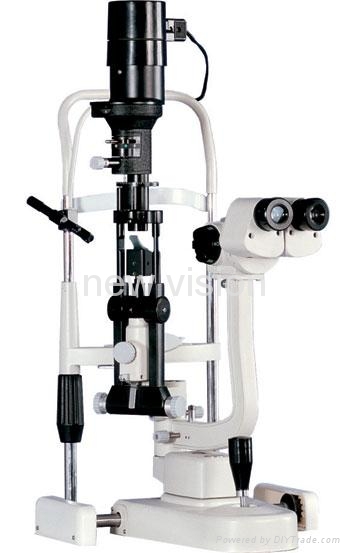

| Traditional Haag-Streit type slit lamp |
| 14mm aperture provides broader and clearer field of view |
| Special-layered, multi-coated to transmit light more efficiently |
| |
|
| SPECIFICATIONS: |
|
| Microscope Type |
Galilean stereoscopic microscope |
| Objective Magnification |
Five-step Drum Magnification |
| Eye Piece |
12.5x |
| Magnifications |
6x（φ33mm）, 10x（φ22.5mm）, 16x（φ14mm）, 25x（φ8.8mm）, 40x（φ5.5mm） |
| (Field of View) |
| Pupil Distance |
55mm～75mm |
| Diopter Adjustment |
-5D~+3D |
| Slit Width |
0mm～14mm adjustable( slit is round when the slit width is 14mm) |
| Slit Height |
1mm～14mm adjustable |
| Slit Angle |
0°～180° adjustable |
| Slit Inclination |
5°, 10°, 15°, 20° |
| Diameter of Light Spot |
φ14mm, φ10mm, φ5mm, φ2mm, φ1mm, φ0.2mm |
| Filter |
Heat Absorption, Grey, Red Free, Cobalt Blue |
| Input Voltage |
AC220V±22 V; AC110V±11 V |
| Packing Volume |
720mmx495mmx480mm |
| Total Weight |
24Kg |
| Optional Accessories |
Applanation Tonometer, Measuring Eye Piece ,Trihedron Lens, Gonioscope, Funduscope, Aspheric Lens, Teaching Tube, beamsplitter, camera adapter |
|
